Loop DNS nameserver and utilities

Loop implements a DNS nameserver that can run as an authoritative DNS server, as a caching recursive resolver, or with both functions. It supports DNSSEC, dynamic updates, fine-grained threat-protection policies, live administration, detailed observability, and a complete DNS operations toolset. It can run independently or be managed centrally by Akira. Loop also includes DNSSEC signing and management utilities, DNS diagnostic clients, a dynamic DNS UPDATE client, and performance tools — all the components used to operate DNS services.

Loop is an enterprise-grade DNS nameserver distribution. It is maintained as a DNS reference implementation by closely adhering to the DNS standards. Loop is free for commercial and personal use. It is packaged for Red Hat Enterprise Linux, Fedora, Ubuntu, Debian, Amazon Linux, and Azure Linux.

Authoritative DNS and recursive resolver
in one DNS nameserver

Authoritative DNS

Serve primary and secondary zones from RFC 1035 zone master files with efficient replication and durable change tracking.

  • Primary and secondary authoritative zones
  • DNS NOTIFY, AXFR, and IXFR
  • Master files, journaling of changes, and integrity checks

Recursive resolver

Resolve and cache iteratively or through forwarders, selecting upstream servers using measured response times and refreshing hot data before expiry.

  • Forwarding, prefetch, and cache controls
  • Built-in empty zones and resolver safeguards
  • DNSSEC validation
  • Smoothed-RTT nameserver selection
  • IPv6, DNS64 and dual-stack server controls

Dynamic DNS

Change live authoritative zones with DNS UPDATE while authorization policies and journaling protect and preserve every update.

  • RFC 2136 DNS UPDATE support
  • Fine-grained update policies
  • TSIG authenticated updates
  • Kerberos/GSS-TSIG authenticated updates

Live zone lifecycle

Operate a large number of authoritative zones without stopping the server: add or remove zones, refresh replicas, and safely work with dynamic zones.

  • Runtime zone add/remove and reconfiguration
  • Refresh, retransfer, reload, and NOTIFY controls
  • Freeze and thaw zones, journal synchronization
Validate, sign, and protect
DNS data and transactions

DNSSEC validation and trust

Validate recursive answers against DNSSEC chains of trust and keep trust anchors current without manual updation.

  • DNSSEC-validating recursive resolution
  • RFC 5011 managed trust anchors
  • Static trust anchors
  • RSASHA256, RSASHA512, ECDSAP256SHA256, ECDSAP384SHA384, ED25519, ED448, MLDSA44 algorithm support
  • Post-quantum downgrade protection
  • NSEC and NSEC3 support
  • RFC 8509 root trust anchor sentinel checks

Manual & automated zone signing

Sign authoritative zones online and automate the routine work of publishing keys, rolling keys, and maintaining signatures.

  • Manual signing with bundled DNSSEC utility programs
  • Automatic and inline DNSSEC signing
  • Key rollover and periodic re-signing
  • RSASHA256, RSASHA512, ECDSAP256SHA256, ECDSAP384SHA384, ED25519, ED448, MLDSA44 algorithm support
  • NSEC, NSEC3, OPTOUT, and signing-state controls

Protected DNSSEC keys

Keep private key material encrypted on disk or in PKCS#11 hardware security modules while using the normal DNSSEC workflow.

  • Encrypted private-key files at rest
  • PKCS#11 HSM key generation and signing
  • RSASHA256, RSASHA512, ECDSAP256SHA256, ECDSAP384SHA384, ED25519, ED448, MLDSA44 algorithm support in encrypted private-key files and for HSM key generation and signing

Authenticated DNS transactions

Authenticate updates, transfers, and other DNS transactions using shared-secret, public-key, or Kerberos-based mechanisms.

  • TSIG, TKEY, and SIG(0) authentication
  • GSS-TSIG/Kerberos authentication
  • Key-aware ACLs and update policies
Threat protection
and fine-grained access controls

Views and access control

Present different nameserver configurations and resolver behavior to different clients and tightly scope access to DNS features.

  • Split DNS with multiple views
  • Address-based and key-based ACLs
  • Query, recursion, transfer, and update controls among others

RPZ filtering and abuse resistance

Apply DNS firewall response policies from third-party feeds, and limit reflection and abuse.

  • Use up to 64 Response Policy Zones (RPZ) with threat control and filtering policies
  • Response Rate Limiting (RRL)
  • DNS cookies

Reporting filtering and errors

Return standards-based filtering information and detailed errors when requests are filtered, prohibited due to access control, or fail during processing.

Resolver and resource safeguards

Bound expensive recursive work and memory use with configurable cache, fetch, recursion, TCP, and transfer limits.

  • Per-server and per-zone fetch quotas
  • Recursion depth, query, and client limits
  • Cache size/TTL and transfer resource controls
Manage, monitor, and diagnose
production DNS operations

Akira-managed operation

Let Akira centrally configure and monitor nameservers over secure authenticated connections while retaining resilient local startup behavior.

  • Authenticated management over secure WebSocket that works through corporate firewalls
  • Remote configuration management of farms of nameserver groups
  • Status monitoring
  • Statistics graphs
  • Cached configuration and built-in fallback

Statistics and logging

Inspect nameserver, resolver, zone-maintenance, and socket activity with detailed counters, history, and configurable logs.

  • XML server statistics
  • Statistics recording in time-series RRD databases
  • Graph rendering in Akira
  • Finely configurable logging system
  • Query logging

Administration and hardening

Control a live server remotely and reduce daemon privileges using operating-system isolation and capability controls.

  • Remote control using rndc program: reload, cache, zone, and DNSSEC controls
  • Unprivileged-user and chroot(2) jail support
  • Linux capability minimization and resource-limit controls

DNS operator toolset

Query, validate, update, inspect, check, sign, and benchmark DNS using utilities shipped and tested within the same distribution.

  • dig and delv DNS clients
  • RFC 2136 DNS UPDATEs using nsupdate
  • Configuration, zone, journal, RR, key-generation, and DNSSEC utilities
  • dnsperf and resperf load testing
DNS management using Akira

Configure, monitor, and manage groups of nameservers centrally with the Akira network manager application.

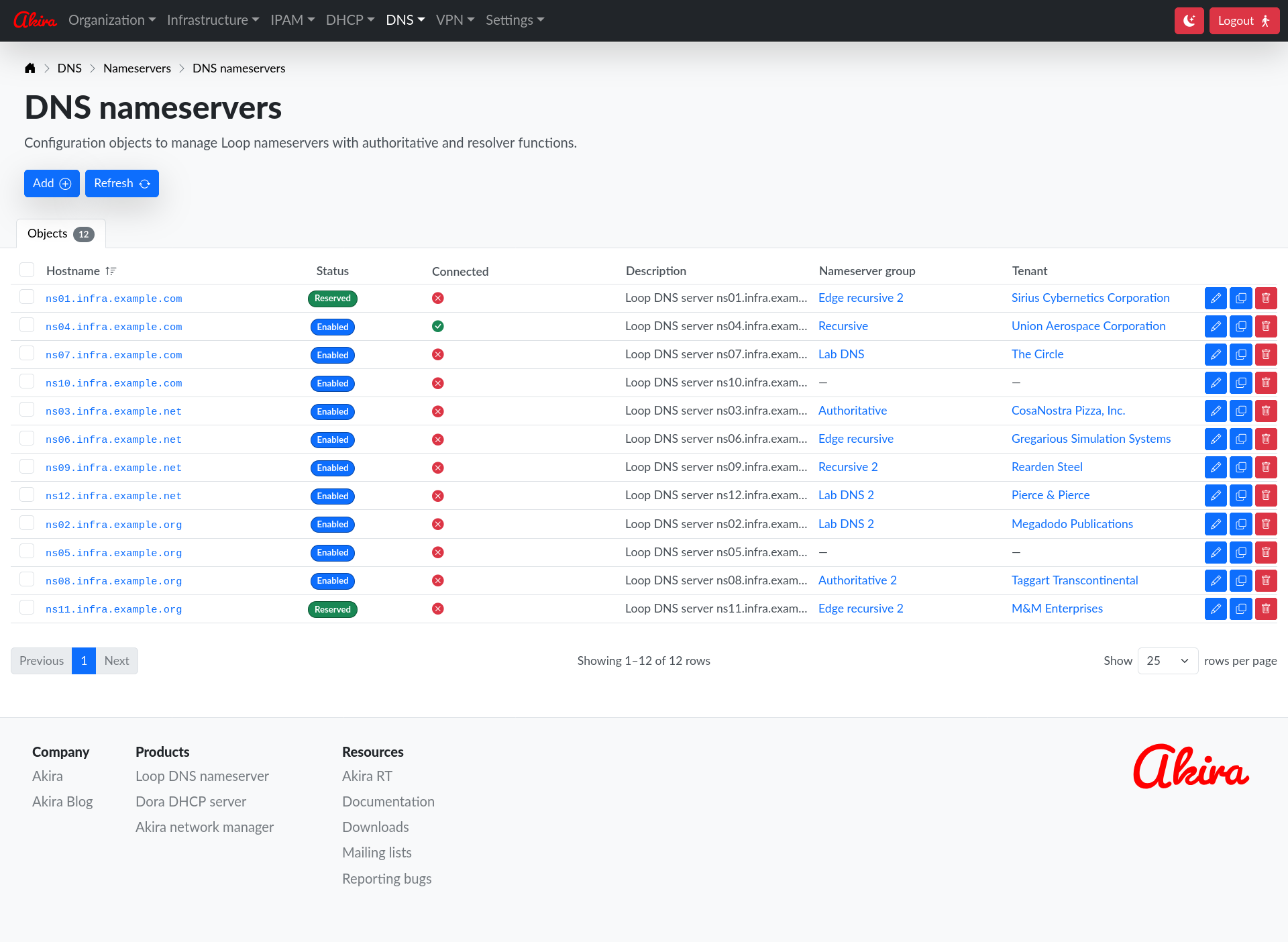

Akira nameserver list

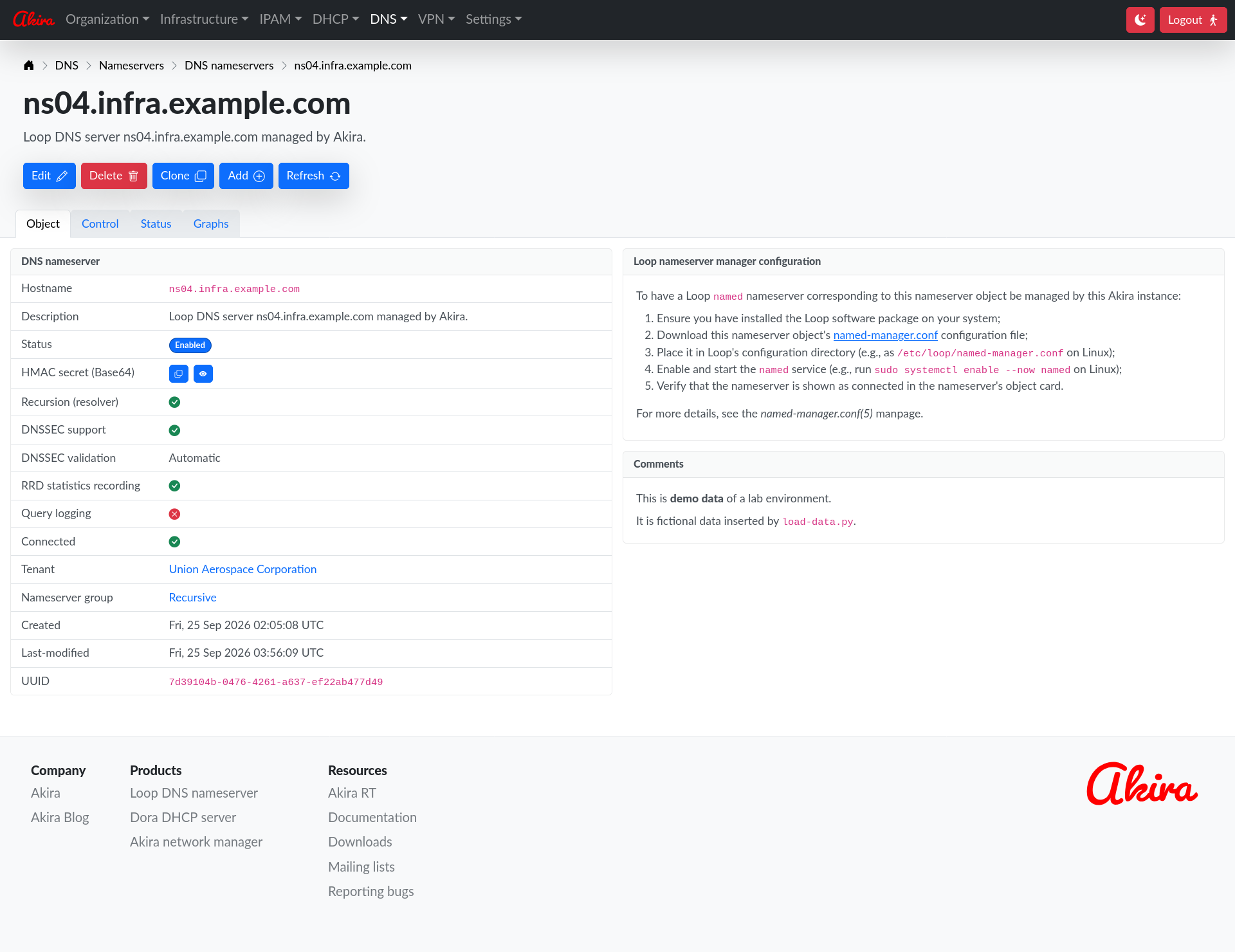

Akira nameserver object

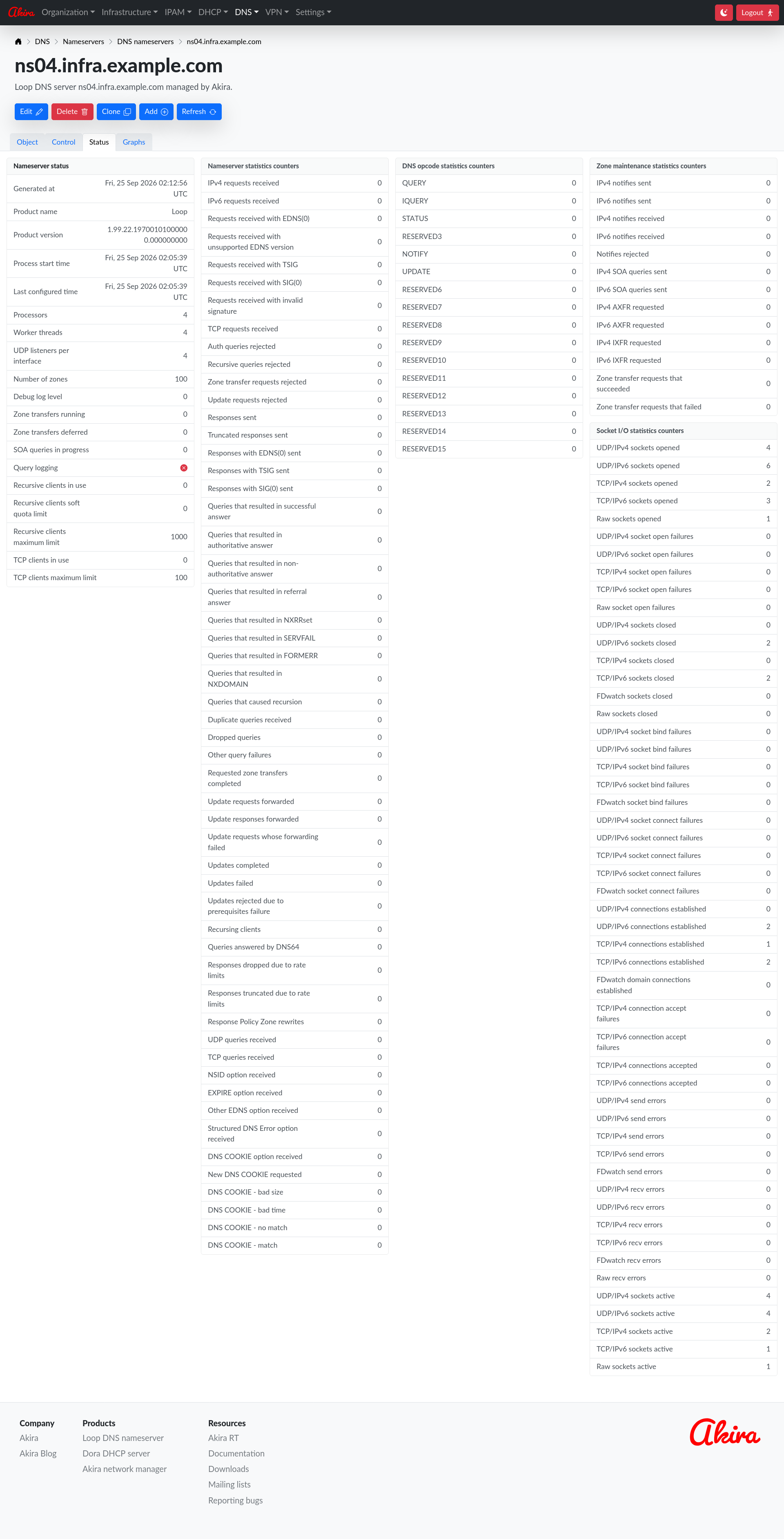

Akira nameserver status

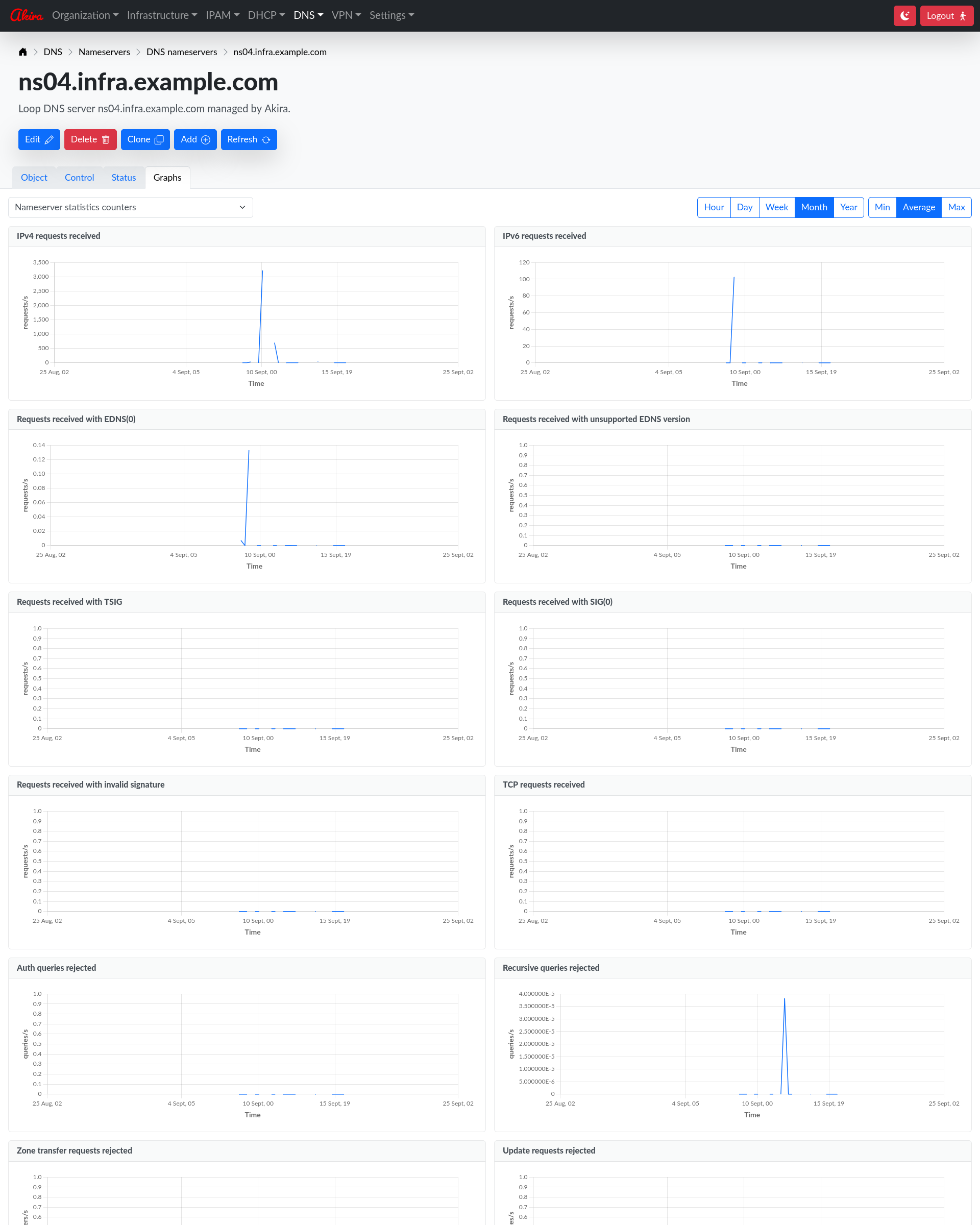

Akira nameserver graphs
Loop installation

Loop is packaged for Red Hat Enterprise Linux & clones, Fedora, Ubuntu, Debian, Amazon Linux, and Azure Linux.

To install Loop version 1.99.22 on Red Hat Enterprise Linux 10 (x86_64), follow these steps as the root user.

First, install the akira-release RPM package that will add the akira-epel and akira-epel-testing DNF repositories to your system, as well as associated GPG keys used to verify signed RPM packages from these repositories:

# dnf install https://download.akira.org/packages/akira/1.99/epel/10/x86_64/akira-release-1.99.22.20260929062732.578d1ce122-1.el10.noarch.rpm

Then, install the loop RPM package that will install the Loop software and documentation:

# dnf install loop

Then, if you wish to run the nameserver, configure named suitably by editing /etc/loop/named.conf, and then run it:

# systemctl enable --now named

To install Loop version 1.99.22 on Red Hat Enterprise Linux 10 (aarch64), follow these steps as the root user.

First, install the akira-release RPM package that will add the akira-epel and akira-epel-testing DNF repositories to your system, as well as associated GPG keys used to verify signed RPM packages from these repositories:

# dnf install https://download.akira.org/packages/akira/1.99/epel/10/aarch64/akira-release-1.99.22.20260929062732.578d1ce122-1.el10.noarch.rpm

Then, install the loop RPM package that will install the Loop software and documentation:

# dnf install loop

Then, if you wish to run the nameserver, configure named suitably by editing /etc/loop/named.conf, and then run it:

# systemctl enable --now named

To install Loop version 1.99.22 on Red Hat Enterprise Linux 9 (x86_64), follow these steps as the root user.

First, install the akira-release RPM package that will add the akira-epel and akira-epel-testing DNF repositories to your system, as well as associated GPG keys used to verify signed RPM packages from these repositories:

# dnf install https://download.akira.org/packages/akira/1.99/epel/9/x86_64/akira-release-1.99.22.20260929062732.578d1ce122-1.el9.noarch.rpm

Then, install the loop RPM package that will install the Loop software and documentation:

# dnf install loop

Then, if you wish to run the nameserver, configure named suitably by editing /etc/loop/named.conf, and then run it:

# systemctl enable --now named

To install Loop version 1.99.22 on Red Hat Enterprise Linux 9 (aarch64), follow these steps as the root user.

First, install the akira-release RPM package that will add the akira-epel and akira-epel-testing DNF repositories to your system, as well as associated GPG keys used to verify signed RPM packages from these repositories:

# dnf install https://download.akira.org/packages/akira/1.99/epel/9/aarch64/akira-release-1.99.22.20260929062732.578d1ce122-1.el9.noarch.rpm

Then, install the loop RPM package that will install the Loop software and documentation:

# dnf install loop

Then, if you wish to run the nameserver, configure named suitably by editing /etc/loop/named.conf, and then run it:

# systemctl enable --now named

To install Loop version 1.99.22 on Fedora Linux 44 (x86_64), follow these steps as the root user.

First, install the akira-release RPM package that will add the akira-fedora and akira-fedora-testing DNF repositories to your system, as well as associated GPG keys used to verify signed RPM packages from these repositories:

# dnf install https://download.akira.org/packages/akira/1.99/fedora/44/x86_64/akira-release-1.99.22.20260929062732.578d1ce122-1.fc44.noarch.rpm

Then, install the loop RPM package that will install the Loop software and documentation:

# dnf install loop

Then, if you wish to run the nameserver, configure named suitably by editing /etc/loop/named.conf, and then run it:

# systemctl enable --now named

To install Loop version 1.99.22 on Fedora Linux 44 (aarch64), follow these steps as the root user.

First, install the akira-release RPM package that will add the akira-fedora and akira-fedora-testing DNF repositories to your system, as well as associated GPG keys used to verify signed RPM packages from these repositories:

# dnf install https://download.akira.org/packages/akira/1.99/fedora/44/aarch64/akira-release-1.99.22.20260929062732.578d1ce122-1.fc44.noarch.rpm

Then, install the loop RPM package that will install the Loop software and documentation:

# dnf install loop

Then, if you wish to run the nameserver, configure named suitably by editing /etc/loop/named.conf, and then run it:

# systemctl enable --now named

To install Loop version 1.99.22 on Fedora Linux 43 (x86_64), follow these steps as the root user.

First, install the akira-release RPM package that will add the akira-fedora and akira-fedora-testing DNF repositories to your system, as well as associated GPG keys used to verify signed RPM packages from these repositories:

# dnf install https://download.akira.org/packages/akira/1.99/fedora/43/x86_64/akira-release-1.99.22.20260929062732.578d1ce122-1.fc43.noarch.rpm

Then, install the loop RPM package that will install the Loop software and documentation:

# dnf install loop

Then, if you wish to run the nameserver, configure named suitably by editing /etc/loop/named.conf, and then run it:

# systemctl enable --now named

To install Loop version 1.99.22 on Fedora Linux 43 (aarch64), follow these steps as the root user.

First, install the akira-release RPM package that will add the akira-fedora and akira-fedora-testing DNF repositories to your system, as well as associated GPG keys used to verify signed RPM packages from these repositories:

# dnf install https://download.akira.org/packages/akira/1.99/fedora/43/aarch64/akira-release-1.99.22.20260929062732.578d1ce122-1.fc43.noarch.rpm

Then, install the loop RPM package that will install the Loop software and documentation:

# dnf install loop

Then, if you wish to run the nameserver, configure named suitably by editing /etc/loop/named.conf, and then run it:

# systemctl enable --now named

To install Loop version 1.99.22 on Debian 13 “Trixie” (amd64), follow these steps as the root user.

First, copy the OpenPGP key that apt uses to verify the release's deb package checksums into /usr/share/keyrings/:

# curl -o /usr/share/keyrings/akira-archive-keyring.gpg https://download.akira.org/packages/akira/1.99/debian/trixie/amd64/akira-archive-keyring-2026-06-09.gpg

Then, add the Akira apt network package repository for your platform:

# echo "deb [signed-by=/usr/share/keyrings/akira-archive-keyring.gpg] https://download.akira.org/packages/akira/1.99/debian/trixie/amd64/ /" > /etc/apt/sources.list.d/akira-trixie-amd64.list

Then, install the loop deb package that will install the Loop software and documentation:

# apt install loop

Then, if you wish to run the nameserver, configure named suitably by editing /etc/loop/named.conf, and then run it:

# systemctl enable --now named

To install Loop version 1.99.22 on Debian 13 “Trixie” (arm64), follow these steps as the root user.

First, copy the OpenPGP key that apt uses to verify the release's deb package checksums into /usr/share/keyrings/:

# curl -o /usr/share/keyrings/akira-archive-keyring.gpg https://download.akira.org/packages/akira/1.99/debian/trixie/arm64/akira-archive-keyring-2026-06-09.gpg

Then, add the Akira apt network package repository for your platform:

# echo "deb [signed-by=/usr/share/keyrings/akira-archive-keyring.gpg] https://download.akira.org/packages/akira/1.99/debian/trixie/arm64/ /" > /etc/apt/sources.list.d/akira-trixie-arm64.list

Then, install the loop deb package that will install the Loop software and documentation:

# apt install loop

Then, if you wish to run the nameserver, configure named suitably by editing /etc/loop/named.conf, and then run it:

# systemctl enable --now named

To install Loop version 1.99.22 on Debian 13 “Trixie” (riscv64), follow these steps as the root user.

First, copy the OpenPGP key that apt uses to verify the release's deb package checksums into /usr/share/keyrings/:

# curl -o /usr/share/keyrings/akira-archive-keyring.gpg https://download.akira.org/packages/akira/1.99/debian/trixie/riscv64/akira-archive-keyring-2026-06-09.gpg

Then, add the Akira apt network package repository for your platform:

# echo "deb [signed-by=/usr/share/keyrings/akira-archive-keyring.gpg] https://download.akira.org/packages/akira/1.99/debian/trixie/riscv64/ /" > /etc/apt/sources.list.d/akira-trixie-riscv64.list

Then, install the loop deb package that will install the Loop software and documentation:

# apt install loop

Then, if you wish to run the nameserver, configure named suitably by editing /etc/loop/named.conf, and then run it:

# systemctl enable --now named

To install Loop version 1.99.22 on Debian 12 “Bookworm” (amd64), follow these steps as the root user.

First, copy the OpenPGP key that apt uses to verify the release's deb package checksums into /usr/share/keyrings/:

# curl -o /usr/share/keyrings/akira-archive-keyring.gpg https://download.akira.org/packages/akira/1.99/debian/bookworm/amd64/akira-archive-keyring-2026-06-09.gpg

Then, add the Akira apt network package repository for your platform:

# echo "deb [signed-by=/usr/share/keyrings/akira-archive-keyring.gpg] https://download.akira.org/packages/akira/1.99/debian/bookworm/amd64/ /" > /etc/apt/sources.list.d/akira-bookworm-amd64.list

Then, install the loop deb package that will install the Loop software and documentation:

# apt install loop

Then, if you wish to run the nameserver, configure named suitably by editing /etc/loop/named.conf, and then run it:

# systemctl enable --now named

To install Loop version 1.99.22 on Debian 12 “Bookworm” (arm64), follow these steps as the root user.

First, copy the OpenPGP key that apt uses to verify the release's deb package checksums into /usr/share/keyrings/:

# curl -o /usr/share/keyrings/akira-archive-keyring.gpg https://download.akira.org/packages/akira/1.99/debian/bookworm/arm64/akira-archive-keyring-2026-06-09.gpg

Then, add the Akira apt network package repository for your platform:

# echo "deb [signed-by=/usr/share/keyrings/akira-archive-keyring.gpg] https://download.akira.org/packages/akira/1.99/debian/bookworm/arm64/ /" > /etc/apt/sources.list.d/akira-bookworm-arm64.list

Then, install the loop deb package that will install the Loop software and documentation:

# apt install loop

Then, if you wish to run the nameserver, configure named suitably by editing /etc/loop/named.conf, and then run it:

# systemctl enable --now named

To install Loop version 1.99.22 on Ubuntu 26.04 LTS “Resolute Raccoon” (amd64), follow these steps as the root user.

First, copy the OpenPGP key that apt uses to verify the release's deb package checksums into /usr/share/keyrings/:

# curl -o /usr/share/keyrings/akira-archive-keyring.gpg https://download.akira.org/packages/akira/1.99/ubuntu/resolute/amd64/akira-archive-keyring-2026-06-09.gpg

Then, add the Akira apt network package repository for your platform:

# echo "deb [signed-by=/usr/share/keyrings/akira-archive-keyring.gpg] https://download.akira.org/packages/akira/1.99/ubuntu/resolute/amd64/ /" > /etc/apt/sources.list.d/akira-resolute-amd64.list

Then, install the loop deb package that will install the Loop software and documentation:

# apt install loop

Then, if you wish to run the nameserver, configure named suitably by editing /etc/loop/named.conf, and then run it:

# systemctl enable --now named

To install Loop version 1.99.22 on Ubuntu 26.04 LTS “Resolute Raccoon” (arm64), follow these steps as the root user.

First, copy the OpenPGP key that apt uses to verify the release's deb package checksums into /usr/share/keyrings/:

# curl -o /usr/share/keyrings/akira-archive-keyring.gpg https://download.akira.org/packages/akira/1.99/ubuntu/resolute/arm64/akira-archive-keyring-2026-06-09.gpg

Then, add the Akira apt network package repository for your platform:

# echo "deb [signed-by=/usr/share/keyrings/akira-archive-keyring.gpg] https://download.akira.org/packages/akira/1.99/ubuntu/resolute/arm64/ /" > /etc/apt/sources.list.d/akira-resolute-arm64.list

Then, install the loop deb package that will install the Loop software and documentation:

# apt install loop

Then, if you wish to run the nameserver, configure named suitably by editing /etc/loop/named.conf, and then run it:

# systemctl enable --now named

To install Loop version 1.99.22 on Ubuntu 26.04 LTS “Resolute Raccoon” (riscv64), follow these steps as the root user.

First, copy the OpenPGP key that apt uses to verify the release's deb package checksums into /usr/share/keyrings/:

# curl -o /usr/share/keyrings/akira-archive-keyring.gpg https://download.akira.org/packages/akira/1.99/ubuntu/resolute/riscv64/akira-archive-keyring-2026-06-09.gpg

Then, add the Akira apt network package repository for your platform:

# echo "deb [signed-by=/usr/share/keyrings/akira-archive-keyring.gpg] https://download.akira.org/packages/akira/1.99/ubuntu/resolute/riscv64/ /" > /etc/apt/sources.list.d/akira-resolute-riscv64.list

Then, install the loop deb package that will install the Loop software and documentation:

# apt install loop

Then, if you wish to run the nameserver, configure named suitably by editing /etc/loop/named.conf, and then run it:

# systemctl enable --now named

To install Loop version 1.99.22 on Ubuntu 24.04 LTS “Noble Numbat” (amd64), follow these steps as the root user.

First, copy the OpenPGP key that apt uses to verify the release's deb package checksums into /usr/share/keyrings/:

# curl -o /usr/share/keyrings/akira-archive-keyring.gpg https://download.akira.org/packages/akira/1.99/ubuntu/noble/amd64/akira-archive-keyring-2026-06-09.gpg

Then, add the Akira apt network package repository for your platform:

# echo "deb [signed-by=/usr/share/keyrings/akira-archive-keyring.gpg] https://download.akira.org/packages/akira/1.99/ubuntu/noble/amd64/ /" > /etc/apt/sources.list.d/akira-noble-amd64.list

Then, install the loop deb package that will install the Loop software and documentation:

# apt install loop

Then, if you wish to run the nameserver, configure named suitably by editing /etc/loop/named.conf, and then run it:

# systemctl enable --now named

To install Loop version 1.99.22 on Ubuntu 24.04 LTS “Noble Numbat” (arm64), follow these steps as the root user.

First, copy the OpenPGP key that apt uses to verify the release's deb package checksums into /usr/share/keyrings/:

# curl -o /usr/share/keyrings/akira-archive-keyring.gpg https://download.akira.org/packages/akira/1.99/ubuntu/noble/arm64/akira-archive-keyring-2026-06-09.gpg

Then, add the Akira apt network package repository for your platform:

# echo "deb [signed-by=/usr/share/keyrings/akira-archive-keyring.gpg] https://download.akira.org/packages/akira/1.99/ubuntu/noble/arm64/ /" > /etc/apt/sources.list.d/akira-noble-arm64.list

Then, install the loop deb package that will install the Loop software and documentation:

# apt install loop

Then, if you wish to run the nameserver, configure named suitably by editing /etc/loop/named.conf, and then run it:

# systemctl enable --now named

To install Loop version 1.99.22 on Ubuntu 24.04 LTS “Noble Numbat” (riscv64), follow these steps as the root user.

First, copy the OpenPGP key that apt uses to verify the release's deb package checksums into /usr/share/keyrings/:

# curl -o /usr/share/keyrings/akira-archive-keyring.gpg https://download.akira.org/packages/akira/1.99/ubuntu/noble/riscv64/akira-archive-keyring-2026-06-09.gpg

Then, add the Akira apt network package repository for your platform:

# echo "deb [signed-by=/usr/share/keyrings/akira-archive-keyring.gpg] https://download.akira.org/packages/akira/1.99/ubuntu/noble/riscv64/ /" > /etc/apt/sources.list.d/akira-noble-riscv64.list

Then, install the loop deb package that will install the Loop software and documentation:

# apt install loop

Then, if you wish to run the nameserver, configure named suitably by editing /etc/loop/named.conf, and then run it:

# systemctl enable --now named

To install Loop version 1.99.22 on Ubuntu 22.04 LTS “Jammy Jellyfish” (amd64), follow these steps as the root user.

First, copy the OpenPGP key that apt uses to verify the release's deb package checksums into /usr/share/keyrings/:

# curl -o /usr/share/keyrings/akira-archive-keyring.gpg https://download.akira.org/packages/akira/1.99/ubuntu/jammy/amd64/akira-archive-keyring-2026-06-09.gpg

Then, add the Akira apt network package repository for your platform:

# echo "deb [signed-by=/usr/share/keyrings/akira-archive-keyring.gpg] https://download.akira.org/packages/akira/1.99/ubuntu/jammy/amd64/ /" > /etc/apt/sources.list.d/akira-jammy-amd64.list

Then, install the loop deb package that will install the Loop software and documentation:

# apt install loop

Then, if you wish to run the nameserver, configure named suitably by editing /etc/loop/named.conf, and then run it:

# systemctl enable --now named

To install Loop version 1.99.22 on Ubuntu 22.04 LTS “Jammy Jellyfish” (arm64), follow these steps as the root user.

First, copy the OpenPGP key that apt uses to verify the release's deb package checksums into /usr/share/keyrings/:

# curl -o /usr/share/keyrings/akira-archive-keyring.gpg https://download.akira.org/packages/akira/1.99/ubuntu/jammy/arm64/akira-archive-keyring-2026-06-09.gpg

Then, add the Akira apt network package repository for your platform:

# echo "deb [signed-by=/usr/share/keyrings/akira-archive-keyring.gpg] https://download.akira.org/packages/akira/1.99/ubuntu/jammy/arm64/ /" > /etc/apt/sources.list.d/akira-jammy-arm64.list

Then, install the loop deb package that will install the Loop software and documentation:

# apt install loop

Then, if you wish to run the nameserver, configure named suitably by editing /etc/loop/named.conf, and then run it:

# systemctl enable --now named
Loop documentation

Loop is documented in the Loop User Manual, and manpages are provided for the Loop programs and their config files. The user manual and manpages are also included in the software packages.

Branch Type User Manual User Manual Download HTML README License
1.99 Development View PDF View HTML Download HTML ZIP View README View LICENSE.txt
Commercial support

Paid commercial support is available covering the entire Akira platform of products.
Whatever Akira products you use, you are covered all under one commercial support plan.

Akira platform support plans

Three different support options are available. Paid commercial support plans include support for all of Loop, Dora, and Akira together on a per-host basis.

None

Free

Business

US $1,000/month/host
Email sales Purchase

Larger operator

US $1,000/month/host
Email sales Purchase
Contract period Not applicable None None
Minimum number of hosts Not applicable 1 64
Support hours Not applicable Business hours (9 AM—5 PM) 24×7 throughout the year
Response time Not applicable Within 1–2 business days Immediate ASAP
Community discussions on public mailing lists
Commercial support from Akira by email
Commercial support from Akira by voice/video
Access to support tickets system
Advance information about vulnerabilities

Paying commercial support customers may follow the instructions provided through their Akira account for receiving support. Other users may use the public Akira mailing lists for community discussions, or email <support@akira.org> for other support requests.
